Membersihkan Backup Catalog SAP HANA menggunakan SAP HANACleaner

Menggunakan SAP HANACleaner adalah salah satu tool untuk mengatasi data backup dan log yang makin membengkak.

SAP Note 2399996 menjelaskan bagaimana cara membersihkan backup catalog, trace files dan lain lain.
Beberapa hal yang ingin disampaikan :

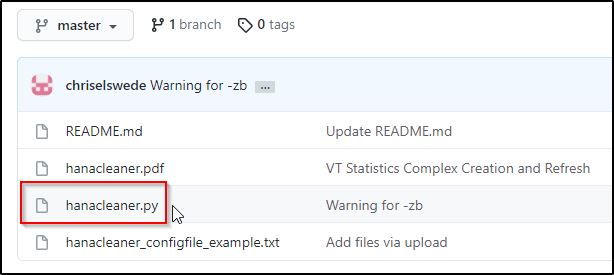

Ini Python Script dan dapat didownload di https://github.com/chriselswede/hanacleaner

Harus dijalankan menggunakan user adm di Server SAP HANA nya
Python nya diinstall di server SAP HANA dan ada dalam PATH
Python ini terhubung melalui host, port dan DB user yang didaftarkan dalam hdbuserstore
DB user membutuhkan privileges yang tepat

Skenario :
Nama SID : ch0
Nama user : ch0adm
Nama Host : serperdep

Dengan skenario di atas, maka kita harus menggunakan user ch0adm. Jika masih menggunakan root, silahkan change user dahulu dengan perintah

 su - ch0adm

Jika sudah change user, untuk memastikannya bisa dicheck dengan perintah:

 whoami

Sekarang buat dulu Host, Port dan DB user. Misalnya kita setting sebagai berikut :

 Host    : serperdep
 KEY     : HANACLEANER1KEY
 DB User : HANACLEANER1
 Password: KataKunci234
 Instance Number : 25

Format perintahnya adalah sebagai berikut :

 hdbuserstore SET NAMAKEY namahost:3nn13,namahost:3nn15 DBUSER Passwordyangdiinginkan

 nn = instance number

Perintahnya adalah sebagai berikut :

 hdbuserstore SET HANACLEANER1KEY serperdep:32513,serperdep:32515 HANACLEANER1 KataKunci234

Untuk melihat Host, Port dan DB user yang ada ada bisa menggunakan perintah

 hdbuserstore LIST

 DATA FILE       : /usr/sap/ch0/home/.hdb/serperdep/SSFS_HDB.DAT
 KEY FILE        : /usr/sap/ch0/home/.hdb/serperdep/SSFS_HDB.KEY

 KEY HANACLEANER1KEY
   ENV : serperdep:32513,serperdep:32515
   USER: HANACLEANER1

Sekarang membuat user di Server Database SAP HANA

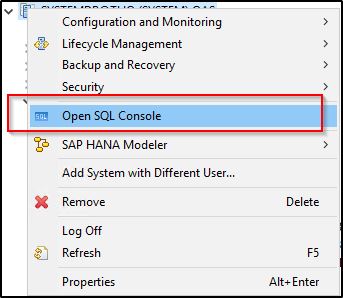

Bisa lakukan dengan SQL Console di HANAStudio

Membuat User : HANACLEANER1, perintahnya adalah sebagai berikut :

 CREATE USER HANACLEANER1 PASSWORD KataKunci234 NO FORCE_FIRST_PASSWORD_CHANGE;

Atur agar Password nya tidak pernah expired. Hal ini dipakai untuk “Technical User” saja, dalam kasus kita kali ini, user dipakai untuk maintain file saja.

 ALTER USER HANACLEANER1 DISABLE PASSWORD LIFETIME;

Berikan permission untuk beberapa object

 GRANT SELECT , DELETE ON _SYS_STATISTICS.HOST_OBJECT_LOCK_STATISTICS_BASE TO HANACLEANER1;
 GRANT SELECT , DELETE ON _SYS_STATISTICS.STATISTICS_ALERTS_BASE TO HANACLEANER1;
 GRANT audit admin , audit operator, backup admin, catalog read, log admin, monitor admin, resource admin, trace admin  to HANACLEANER1;

Sekarang kita coba dengan perintah :

python hanacleaner.py -bd 200 -be 5 -br true -k HANACLEANER1KEY

Hasilnya akan seperti di bawah ini:

Will now check most used memory in the file systems. If it hangs there is an issue with  df -h, then see if the -fs flag helps.
The most used filesystem is using
83%
***********************************************************
2021-04-06 15:05:47
hanacleaner as thqadm by HANACLEANER1KEY on THQ(25)  with
hanacleaner.py -bd 200 -be 5 -br true -k HANACLEANER1KEY
Cleanup Statements will be executed (-es is default true)
Before using HANACleaner read the disclaimer!
python hanacleaner.py --disclaimer
***********************************************************
0 data backup entries and 0 log backup entries were removed from the backup catalog
    (Cleaning traces was not done since -tc and -tf were both -1 (or not specified))
    (Cleaning dumps was not done since -dr was -1 (or not specified))
    (Cleaning of general files was not done since -gr was -1 (or not specified))
    (Compression of the backup logs was not done since -zb was negative (or not specified) or this is not more supported for your HANA Version)
    (Cleaning of the alerts was not done since -ar was negative (or not specified))
    (Cleaning of unknown object locks entries was not done since -kr was negative (or not specified))
    (Cleaning of the object history was not done since -om was negative (or not specified))
    (Reclaim of free logsements was not done since -lr was negative (or not specified))
    (Cleaning of events was not done since -eh and -eu were negative (or not specified))
    (Cleaning audit logs was not done since -ur was -1 (or not specified))
    (Cleaning of pending emails was not done since -pe was -1 (or not specified))
    (Defragmentation was not done since -fl was negative (or not specified))
    (Reclaim of row store containers was not done since -rc was negative (or not specified))
    (Compression re-optimization was not done since at least one flag in each of the three compression flag groups was negative (or not specified))
    (Creation of optimization statistics for virtual tables was not done since -vs was false (or not specified))
    (Refresh of optimization statistics for virtual tables was not done since -vnr was not more than 0 (or not specified))
    (Cleaning of the hanacleaner logs was not done since -or was negative (or not specified))

Terlihat tidak ada error. Untuk memudahkan melihat konfigurasi, biasanya saya buat sebuah file yang isinya parameter-parameter yang diinginkan. Untuk contoh kali ini kita buat sebuah file dengan nama konfigurasi.txt yang isinya adalah sebagai berikut :

-bd 200
-be 5
-br true
-k HANACLEANERTHQKEY

Kemudian cara memanggilnya adalah sebagai berikut :

 python hanacleaner.py -ff konfigurasi.txt
